Amazingly important elements in Calgary landscaping projects serving multiple functions by controlling terrain inclines while stopping soil migration and creating appealing outdoor scenery. The mountain freeze-thaw cycles combined with changing temperatures and diverse soil types make retaining walls in this area highly prone to structural damage as time progresses. By understanding typical problems and solutions you can achieve enduring retaining walls that endure over time.
Table of Contents
1. Leaning or Bulging Walls
Problem:
Outward bulging along with leaning indicates a retaining wall experiences structural stress. Improper soil pressure together with weak drainage systems and inadequate structural supports commonly lead to such retaining wall failures.
Solution:
- Improve Drainage: The seasonal precipitation together with snowmelt conditions in Calgary result in water accumulation behind walls which generates increased hydraulic pressure. Building weep holes as part of a drainage structure together with gravel backfill and French drain systems minimizes wall stress.
- Reinforcement: In severe cases, the wall may need reinforcement with tiebacks, anchors, or even partial reconstruction to correct the lean.
- Early Detection: Routine inspection efforts enable prompt detection of minor issues which subsequently prevents major financial repairs.
2. Cracking Due to Freeze-Thaw Cycles
Problem:
Calgary’s dramatic temperature shifts produce cracks in retaining walls. Water infiltrates tiny pockets in the structure before ice formation causes the domains to enlarge and intensify the damage permanently.
Solution:
- Regular Inspections: Check for small cracks and seal them promptly with masonry crack filler before they worsen.
- Use Flexible Materials: Consider using flexible interlocking blocks that can accommodate minor shifts without cracking.
- Proper Base Preparation: Ensuring a well-compacted base with drainage layers reduces movement that leads to cracking.
3. Water Accumulation and Drainage Failures
Problem:
Retaining wall failures frequently occur because of poor drainage systems. Water accumulation behind retaining walls generates rising pressure that leads to structural weakness. The combination of variable precipitation amounts and quick snowmelt processes occurs often in Calgary.
Solution:
- Install Drainage Systems: Use perforated drainage pipes, gravel backfill, and weep holes to channel water away from the wall.
- Apply Waterproofing: Sealants and waterproof membranes help prevent moisture from penetrating the wall.
- Maintain the Drainage System: Regularly clear weep holes and drains to ensure they remain functional.
4. Soil Erosion Behind the Wall
Problem:
Soil erosion weakens retaining wall foundations through substandard stabilization processes leading to foundation-based instability and movement. Heavy rainfall during snow melt in Calgary contributes to worsening retaining wall foundation instability.
Solution:
- Plant Deep-Rooted Vegetation: Ground cover and shrubs help stabilize soil and prevent erosion.
- Use Erosion Control Fabrics: Installing geotextiles or erosion control blankets can add an extra layer of soil retention.
- Reinforce the Base: Adding compacted gravel or geogrid layers behind the wall enhances stability.
5. Foundation Shifting Due to Poor Soil Conditions
Problem:
The diverse soil composition of Calgary containing expansive clay results in irregular settling of retaining walls. Kit wall foundations can develop settlement problems when foundation design or compaction procedures are incorrect.
Solution:
- Conduct Soil Testing: Before building or repairing a retaining wall, a soil test can determine the best foundation approach.
- Deep Footings: A deeper foundation or reinforced concrete base helps counteract soil movement.
- Monitor for Early Signs: Look for uneven gaps, tilting, or separations that may indicate foundation issues.

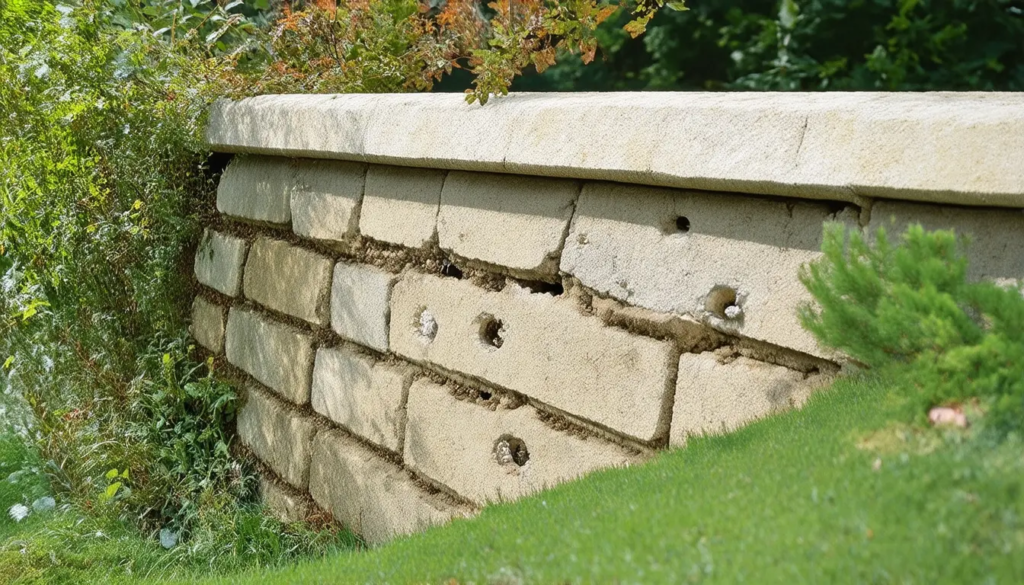

6. Pest Damage Compromising Structural Integrity
Problem:
Rodents, ants, and termites can burrow into retaining walls, creating weak points and accelerating structural deterioration.
Solution:
- Regular Inspections: Look for burrow holes, insect activity, or loose wall materials.
- Use Pest-Resistant Materials: Concrete and treated wood are less susceptible to infestations.
- Keep the Area Maintained: Remove excess vegetation and debris that might attract pests.
Maintaining a Strong and Durable Retaining Wall in Calgary
Decades-spanning retaining wall longevity depends on proper maintenance but Calgary-specific environmental factors demand active maintenance measures. Routine inspections and proper drainage combined with reinforcement measures allow minor wall problems to avoid evolving into expensive repairs.
You should contact an expert who understands Calgary’s special environmental conditions when facing any of these standard retaining wall problems. Taking immediate action to solve these problems will help maintain both the safety and functionality as well as the aesthetic appeal of your outdoor space until many years forward.
